How to Choose the Right Cold Room Panel Thickness: A Complete Guide

Choosing the right cold room panel thickness is essential for maintaining stable temperatures, improving energy efficiency, and reducing operating costs. PU cold room panels are widely used in food processing, refrigerated warehouses, commercial freezers, and cold chain logistics.

This guide explains how to select the appropriate panel thickness based on temperature requirements, insulation performance, and project applications.

1. Why Does Panel Thickness Matter?

PU cold room panels consist of a rigid polyurethane insulation core bonded between two protective metal sheets. Their insulated structure reduces heat transfer and helps maintain consistent storage temperatures.

Thicker panels generally provide greater thermal resistance, helping reduce refrigeration loads and improve energy efficiency. Selecting the right thickness ensures a balance between initial investment and long-term operating costs.

















2. Common Thicknesses and Applications

Different cold storage environments require different insulation levels. The following table provides a general selection reference.

Panel Thickness	Typical Applications
50mm	Temperature-controlled rooms and insulated partitions
75mm	Fresh food storage and commercial chillers
100mm	Refrigerated warehouses and general cold storage
120–125mm	Low-temperature storage and commercial freezers
150mm	Frozen food warehouses and freezer rooms
200mm	Deep-freezing facilities and demanding insulation applications

Note: Recommended thicknesses are indicative. Final selection depends on operating temperature, ambient conditions, and project-specific insulation requirements.











3. Key Factors in Thickness Selection

Operating Temperature: Lower storage temperatures generally require greater insulation performance.

Ambient Conditions: Hot climates increase heat gain and may require thicker panels.

Storage Requirements: Fresh produce, dairy products, frozen meat, and seafood have different temperature and humidity needs.

Energy Efficiency: Suitable insulation reduces heat transfer and helps lower long-term refrigeration costs.

Installation & Sealing: Properly sealed joints and connections are essential for preventing thermal bridges and maintaining insulation performance.

4. Cam-Lock vs. Continuous Cold Room Panels

Besides thickness, the panel connection system affects installation and overall cold room performance.

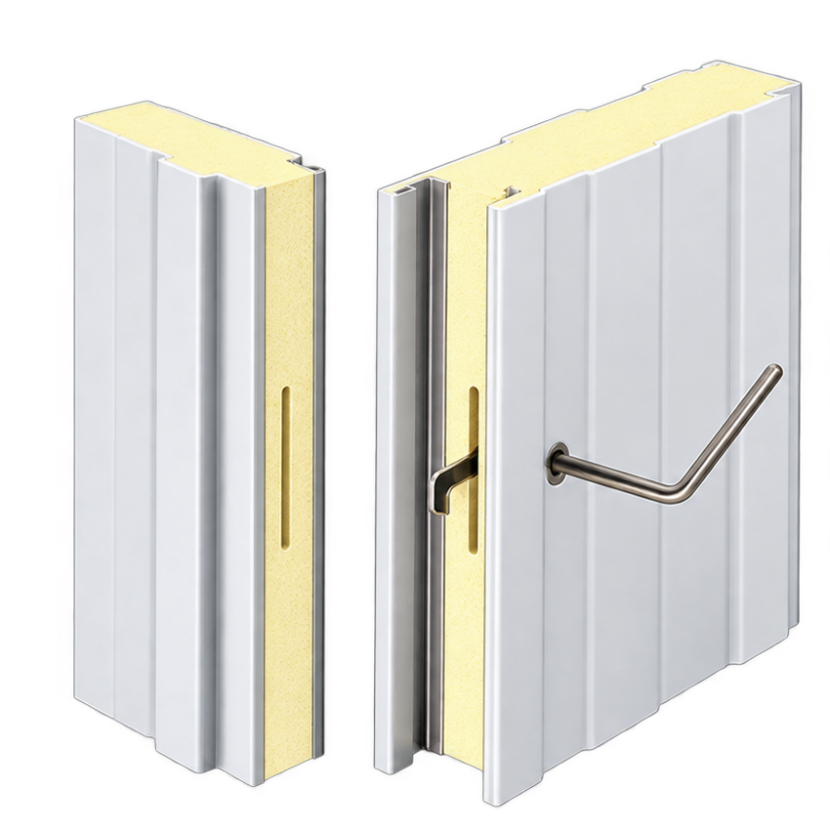

Cam-Lock Panels: Feature integrated locking mechanisms for convenient assembly, making them suitable for modular cold rooms.

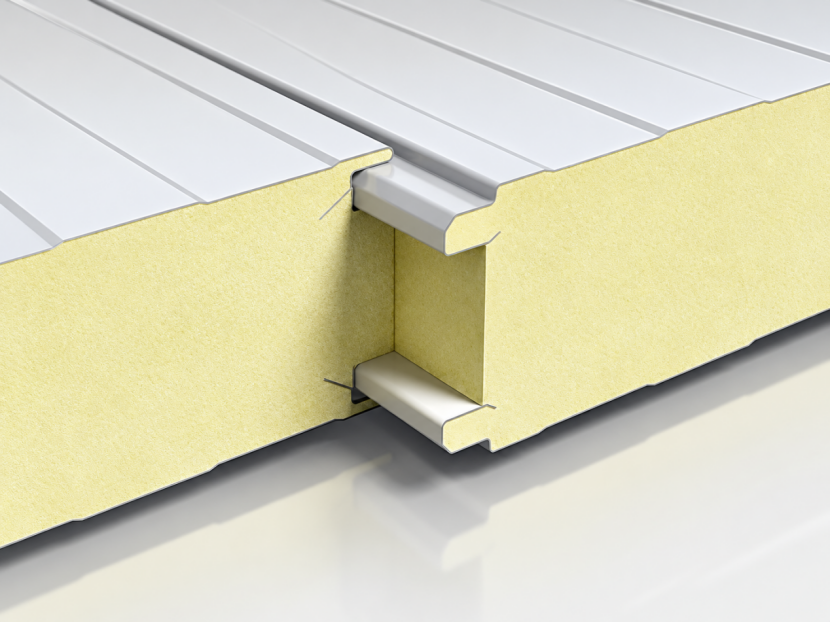

Continuous Panels: Designed for larger wall and ceiling systems, commonly used in commercial and industrial cold storage facilities.

Both systems require proper joint sealing to maintain thermal insulation and vapor integrity.

5. How to Choose the Right Panel

Before selecting your cold room panels, consider the required storage temperature, local climate, stored products, insulation performance, and installation conditions.

Choosing the appropriate thickness and connection system helps ensure reliable performance and long-term energy efficiency.





Conclusion

Selecting the right cold room panel thickness is essential for efficient temperature control and reliable cold storage performance.

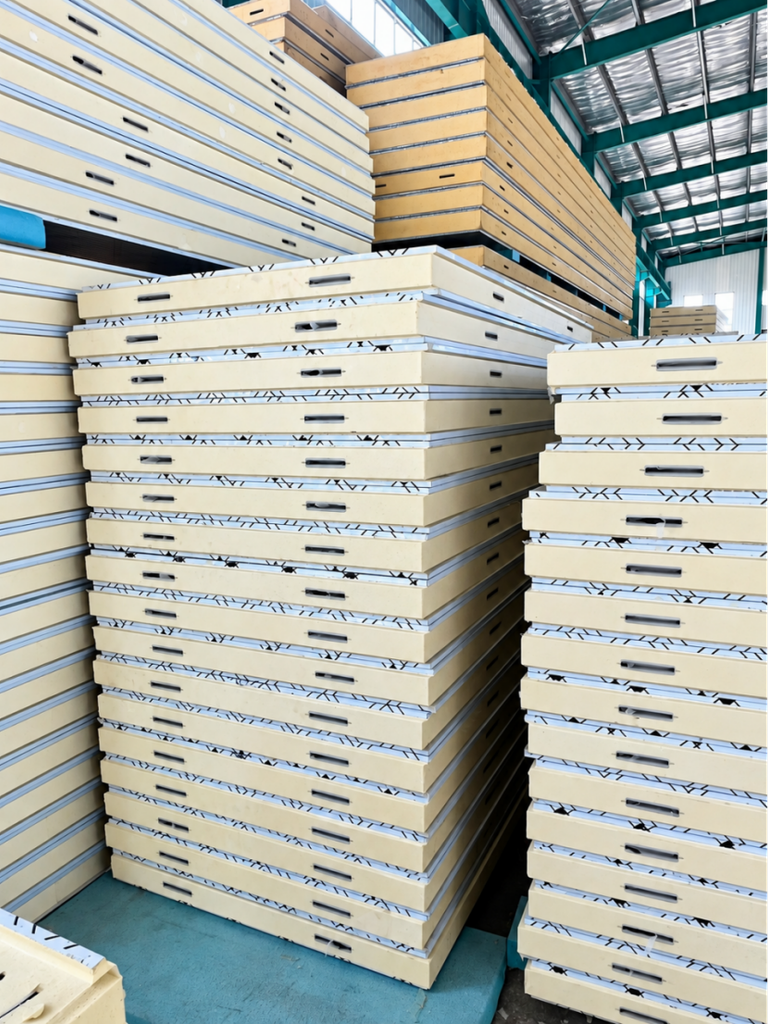

Liaoning Xiangyi Steel Co., Ltd. supplies PU cold room panels in 50mm, 75mm, 100mm, 120mm, 125mm, 150mm, and 200mm thicknesses, with Cam-lock and continuous panel options for different commercial and industrial applications.

Contact us for product specifications, technical support, and customized project quotations.
